Chaco Canyon, NM 2011


The hub of Chacoan Anasazi culture (Ancient Pueblos) was Chaco Canyon, [now a part of the Chaco Culture National Historical Park], situated nearly in the center of the high, treeless, arid Chaco Basin of northwest New Mexico. Becky (my wife) and I explored this location in October 2011, while on Fall Break.

The Four-Corners area map in the Western United States

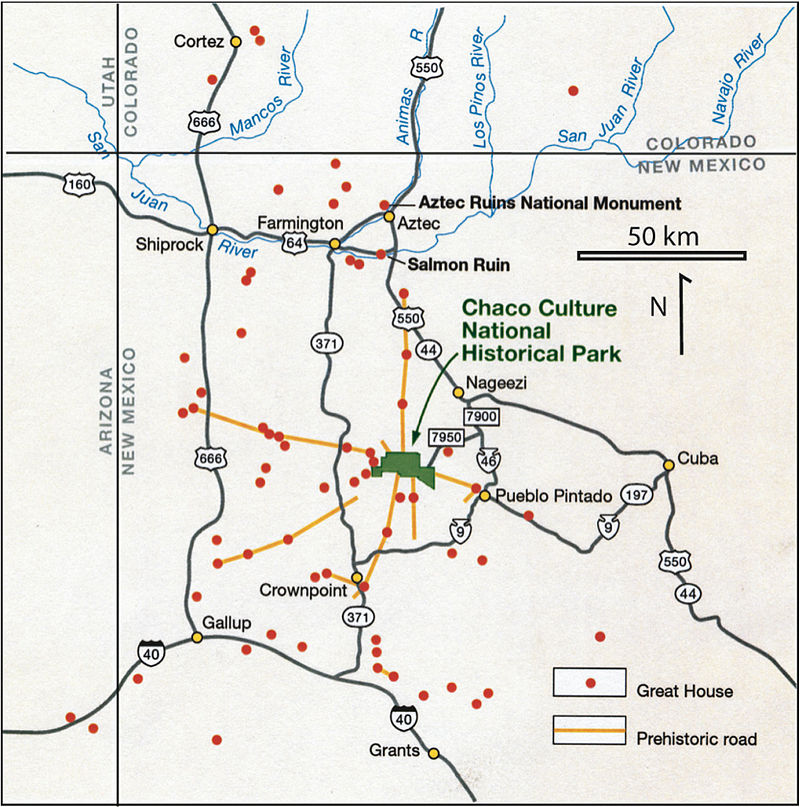

From the hub of Chaco Canyon ancient roads ran like spokes of a wheel to settlements occupied contemporanously with Chaco that are referred to as outliers.

the ancient roads of the Chaco Culture.

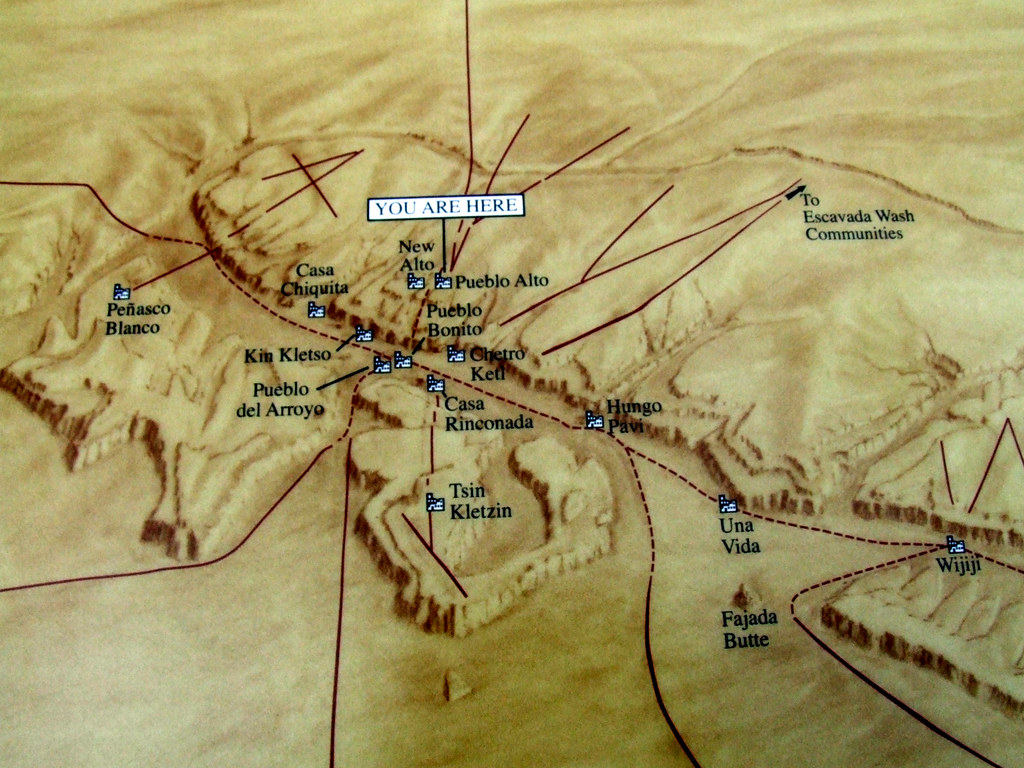

The historical park includes the magnificent world-famous ruins of Pueblo Bonito, Casa Rinconada, Chetro Ketl, and others , as well as Fajada Butte, on top of which is the well-publicized Sun Dagger site.

Photo taken from an interpretive sign near Pueblo Alto ruin.

Chaco Canyon lies near the center of the San Juan Basin of New Mexico, which is near the southeastern edge of the much larger Colorado Plateau. This region has broad exposures of horizontal sedimentary layers that have eroded into plateaus, mesas, buttes, and canyons. The rocks exposed in Chaco Canyon record an interval in the Earth’s history during the Late Cretaceous Period, approximately 75 to 80 million years ago. During this time, Chaco was part of the migrating coastline of an ancient inland sea. In the Late Cretaceous, much of the Southern Rocky Mountain Region was characterized by a subtropical climate which supported lowland forests of conifer, eucalyptus, ebony palm, cypress, and magnolia. Upland areas supported hardwood forests of oak, walnut, ash, and birch. The landscape of late cretaceous Chaco Canyon resembled modern day coastal areas, such as those found on the southeastern Atlantic and Gulf coast of the United States. These mainland beach, coastal plain, and barrier island environments consist of marshes, swamps, river deltas and lagoons adjacent to beach and relatively shallow coastal waters.

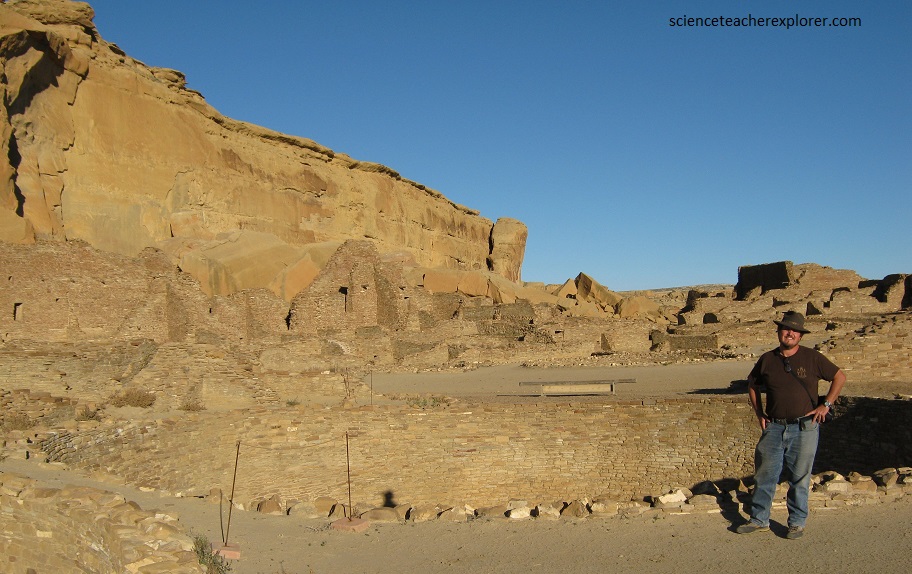

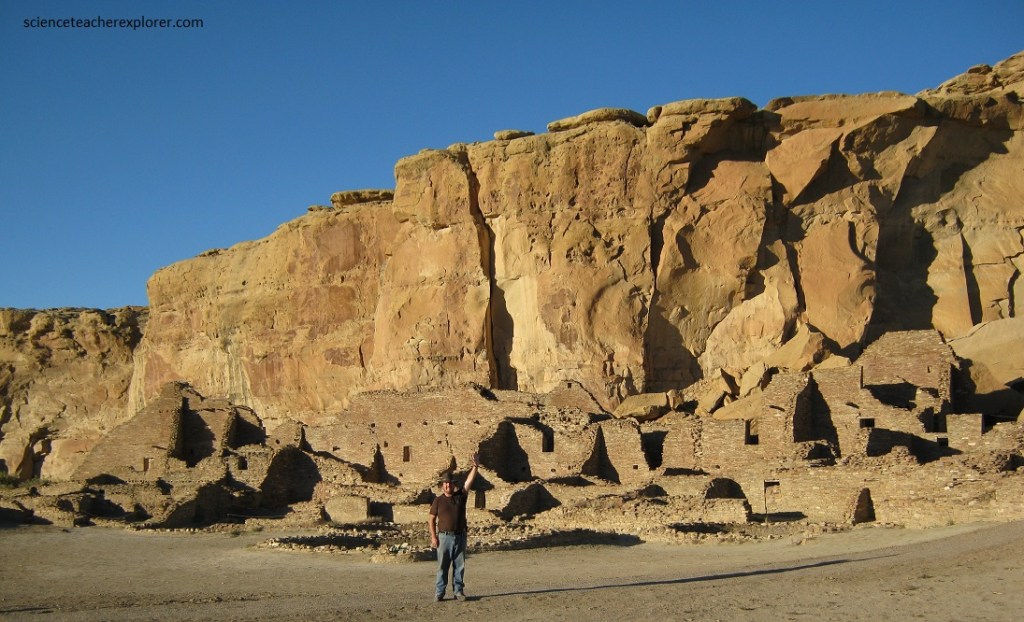

I’m standing in front of the Pueblo Bonito ruins inside the Chaco Canyon

In Classic Pueblo times (between 1050 and 1100) Pueblo Bonito could have housed perhaps 1,000 Natives in some 600 rooms. It was the largest and one of the most spectacular buildings constructed by the Anasazi, (Ancient Pueblo).

Artist depiction of Pueblo Bonito; image taken from the visitor Center at Chaco Canyon.

Pueblo Bonito in Chaco Canyon stood five stories high along the rear wall and was occupied for more than 200 years. During four construction period some 800 rooms and 37 kivas were built.

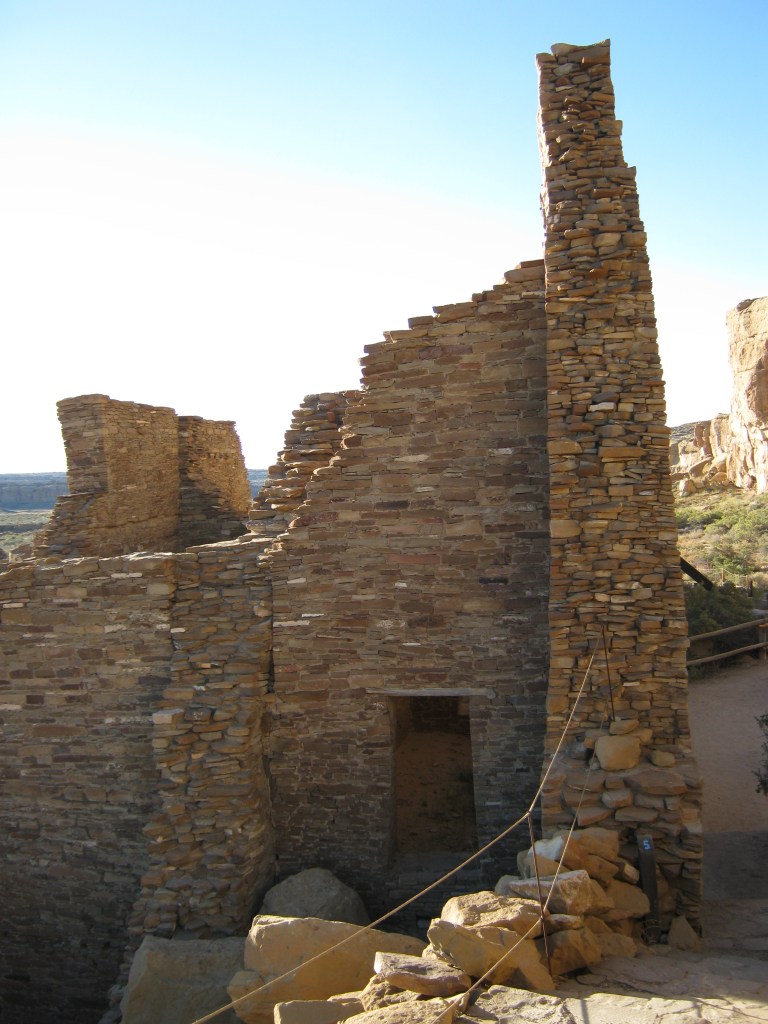

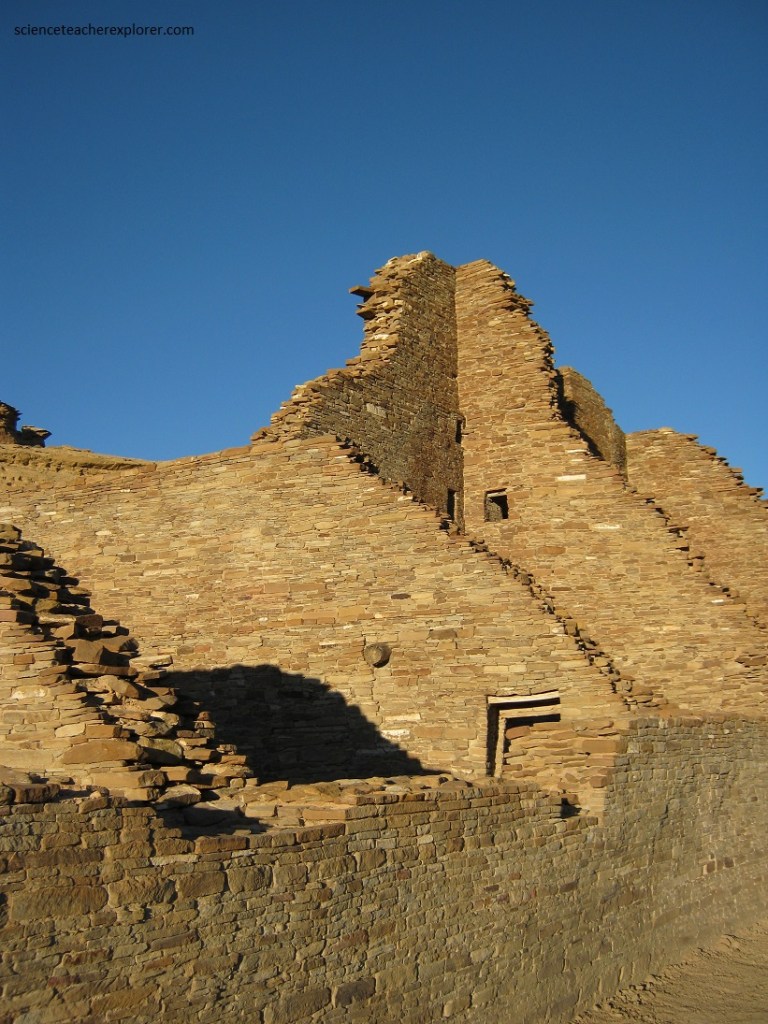

The Back-Wall of Pueblo Bonito at Chaco Canyon

Part of the evidence for a general construction plan for Pueblo Bonito my be seen in the way the curving rear (north) wall of the pueblo was built thicker at its base and tapering toward the upper stories, (pictured above). This also represents a good example of the masonry-veneered, rubble-cured was construction found in the large Chaco ruins.

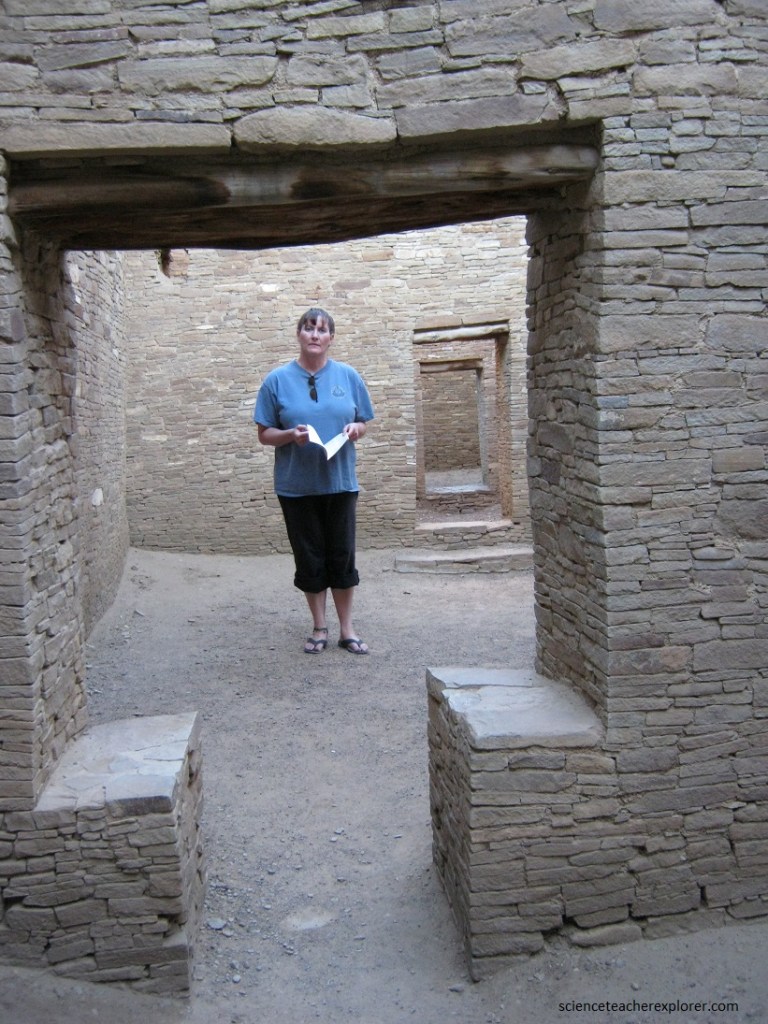

Becky is standing inside the rooms of Pueblo Bonito at Chaco Canyon

The living rooms at Pueblo Bonito were quite large by Anasazi (Ancient Pueblo) standards, and they were built of unusually fine sandstone masonry.

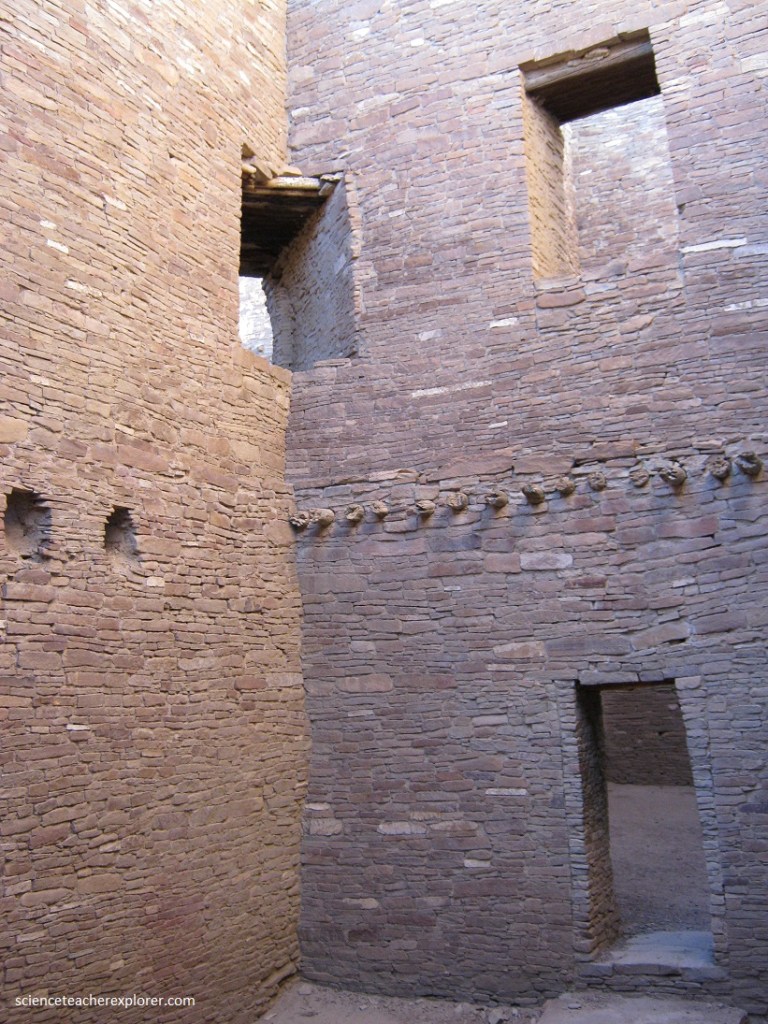

Three story level building at Pueblo Bonito at Chaco Canyon

Several different styles of banded and unbanded masonry in the above photograph mark the work of individual stone masons. The horizontal grooves in the walls held the ends of roof-support beams separating the different floor levels, at least three of which are clearly visible.

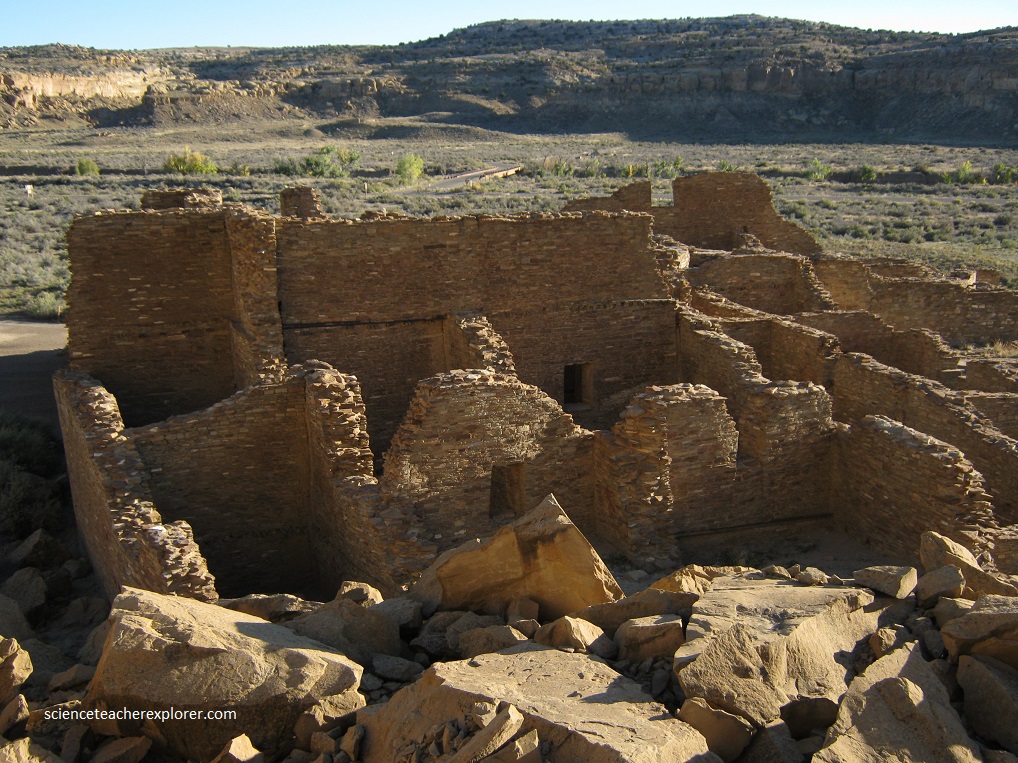

Inside the three story structures in Pueblo Bonito at Chaco Canyon

The full extent of Chacoan astronomical sophistication is as yet unknown. Certainly they were aware of the seasonal movements of the sun and could determine the equinoxes and solstices by observing the sunrise with respect to specific points on the points on the canyon cliffs.

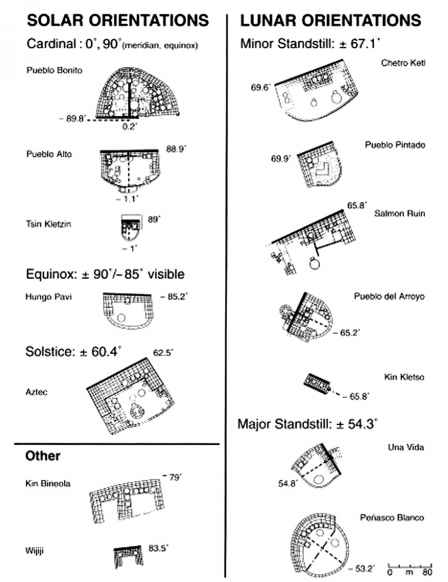

Astronomical Alignments of the building of the Chaco Culture.

There are 14 buildings at Chaco, of which 12 appear to be astronomically oriented: Three are oriented on the cardinal points (Pueblo Bonito, Pueblo Alto, and Tsin Kletzin), of which Pueblo Bonito, the largest building, is oriented with great accuracy; the wall that divides the half-circle is oriented within 15 minutes of a degree. of true north, and the western half of the south wall runs straight on the east-west line within 8 minutes of a degree.

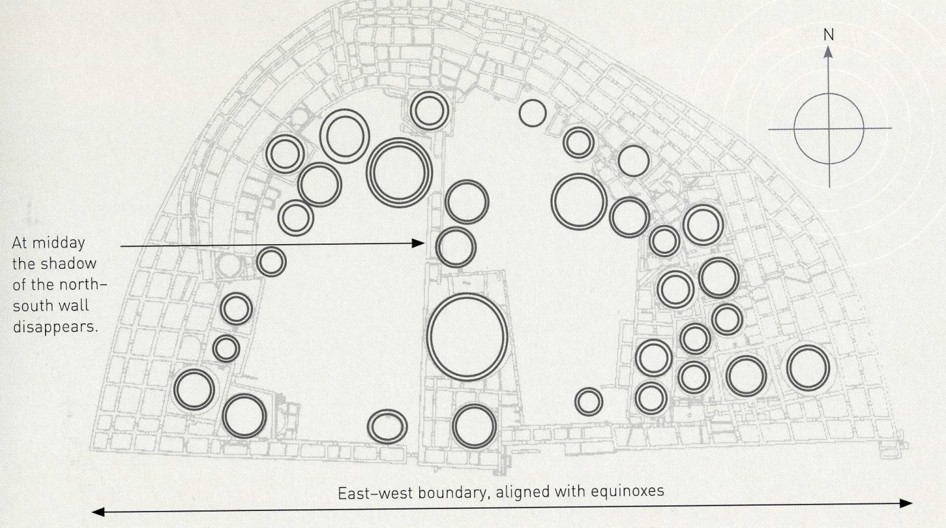

Solar alignment of the entire structure of Pueblo Bonito at Chaco Canyon

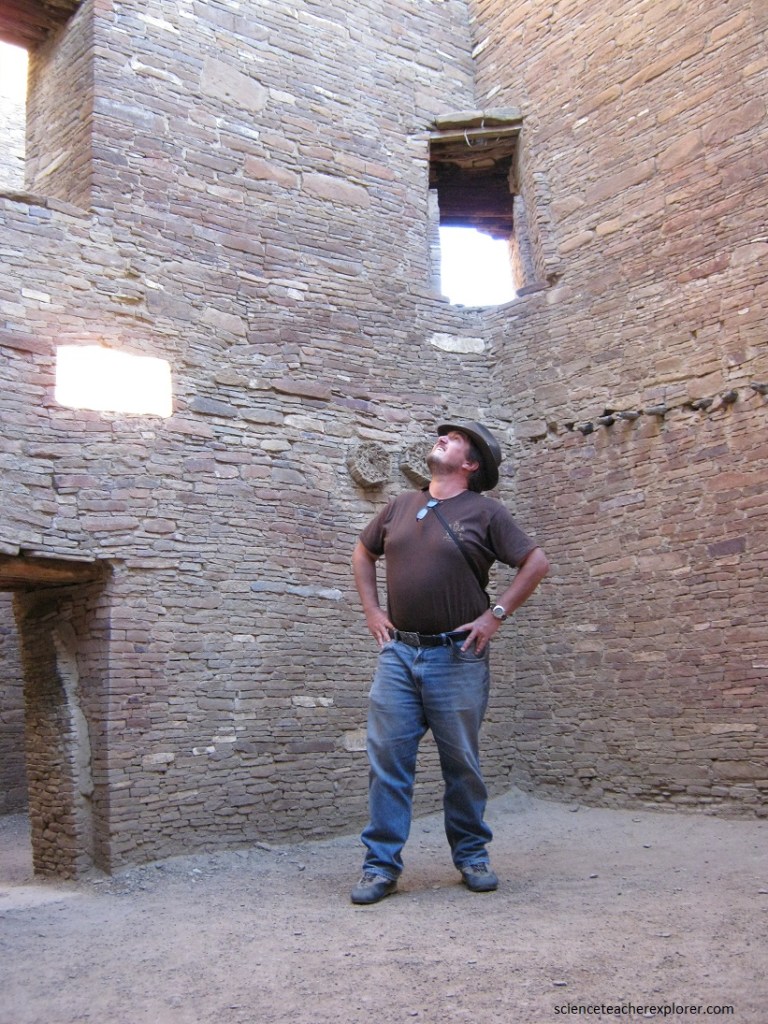

I’m standing in a 3 story room that the windows are solar aligned in the Pueblo Bonito at Chaco Canyon.

Pictured above, at Pueblo Bonito, the winter solstice could be determined by the alignment of two third-story windows with the sunrise point on the cliff on that day.

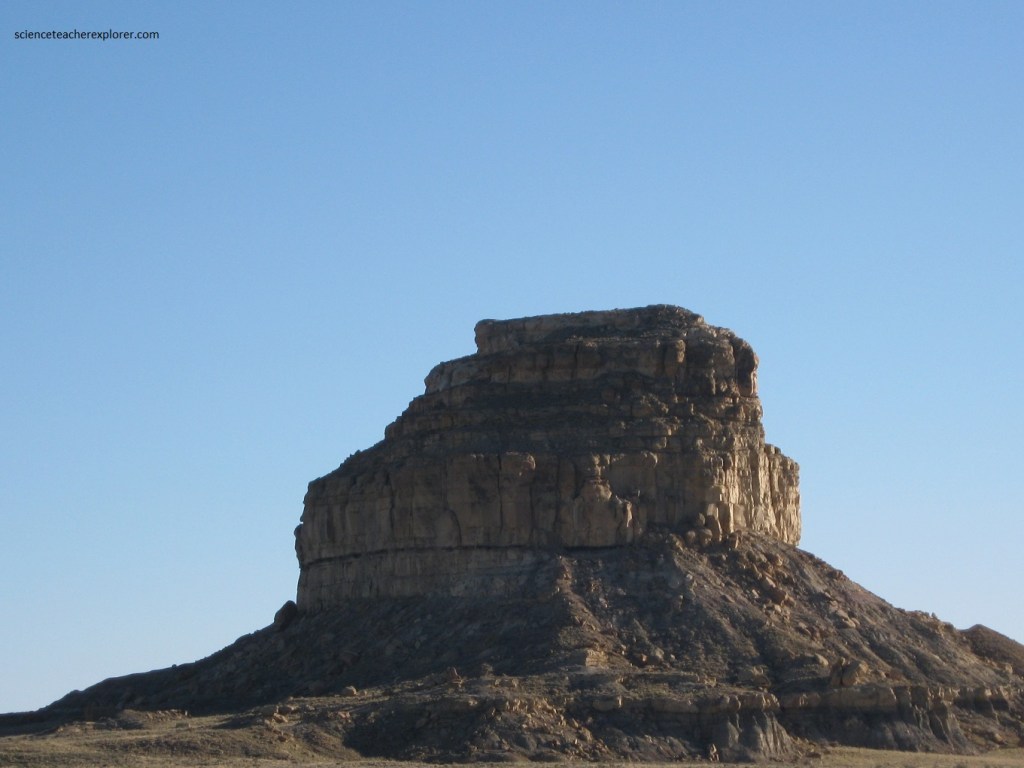

Fajada Butte at Chaco Canyon

Evidence of the Chacoans’ interest in lunar and solar cycles is further seen throughout Fajada Butte, a 135-meter-high rocky peak 7 kilometers southwest of Pueblo Bonito. There are numerous petroglyphs, that is, drawings carved onto rocks. One is a few meters from the top; it is a semicircle crossed by a radial line perpendicular to the diameter of the base, with a circle placed to the left of the line itself. Thus it is a stylized plan of the Pueblo Bonito complex, which has a large kiva set to the left of the dividing wall. An arrow is drawn outside the figure of the semicircle.

Spiral Petroglyphs found at the top of Fajada Butte; “Sun Dagger”

On Fajada Butte there are also carvings used as lunar-solar calendars.  The most interesting, example is the so-called petroglyph of three slabs, placed in the vicinity of the summit. This is a drawing made up of two spiral figures; three great slabs of stone are propped on the same rock, over 2 meters high and weighing about a ton each. They cast a shadow over the whole surface on which the drawing is traced.

The three slabs of rock and “The Sun Dagger” on top of Fajada Butte

The light can illuminate the figures only through the two openings between the three slabs; the passing of the “blades” of light thus created will vary day by day.

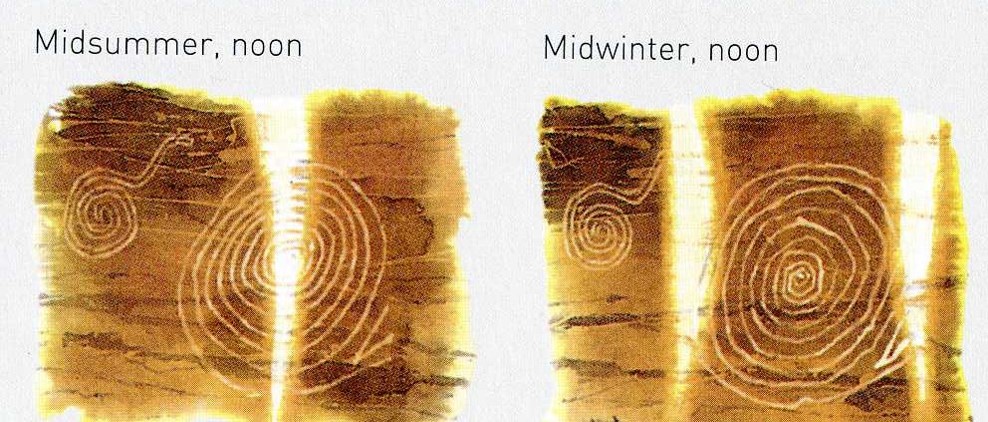

Summer Solstice at “The Sun Dagger” on Fajada Butte.

Pictured above, at the summer solstice the blade of light crosses the center of the largest spiral. On subsequent days the “arrow” shifts to the right and a second “arrow” appears to its left. At the equinox this second blade of light reaches the center of the smallest spiral. The movement of both proceeds to the right to the point of illuminating tangentially the largest spiral at the winter solstice.

Looking northwest across the Casa Rinconada at Chaco Canyon

Pictured above, unlike the vast majority of kivas, Casa Rinconada is not embedded in a large building complex, but stands on top of a small hill a good distance away from large buildings and a couple of kilometers south of Pueblo Bonita.

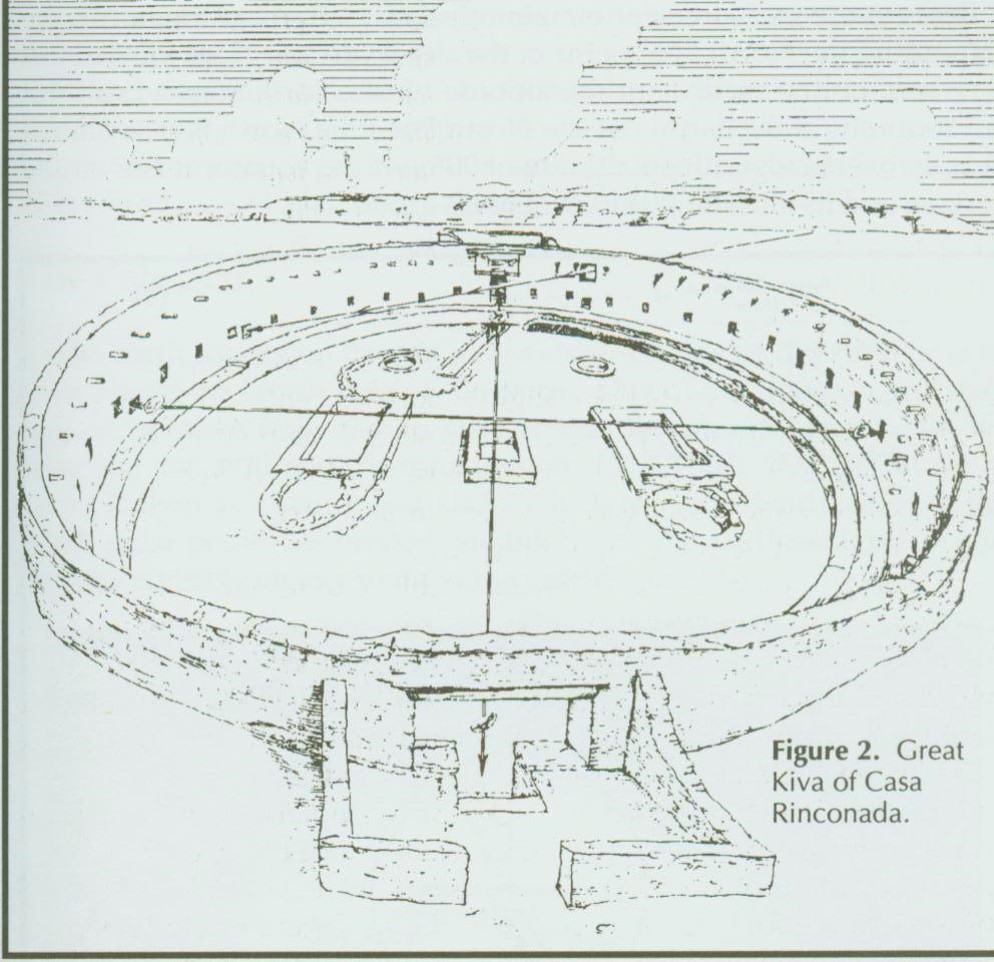

Artist depiction of Casa Rinconada, (image taken from a visitors guide at the park).

Casa Rinconada stands partly above ground, unlike most kivas in which the roof is at ground level. It is a little over 20 meters in diameter and 4-5 m deep, making it one of the largest known great kivas.

I’m standing on the north end of Casa Rinconada at Chaco Cangon

The geometrical care put into planning and building Casa Rinconada goes beyond anything else encountered in Chaco Canyon. The symmetrical axis defined by the two T-shaped doors is aligned with the North-South line to within 20 minutes of a degree. The small niches lining the interior wall are equally spaced and positioned so that lines defined by opposing pairs of niches all have their center within 10 cm of the kiva center, which also indicates that the kiva walls depart very little from a perfect circle.

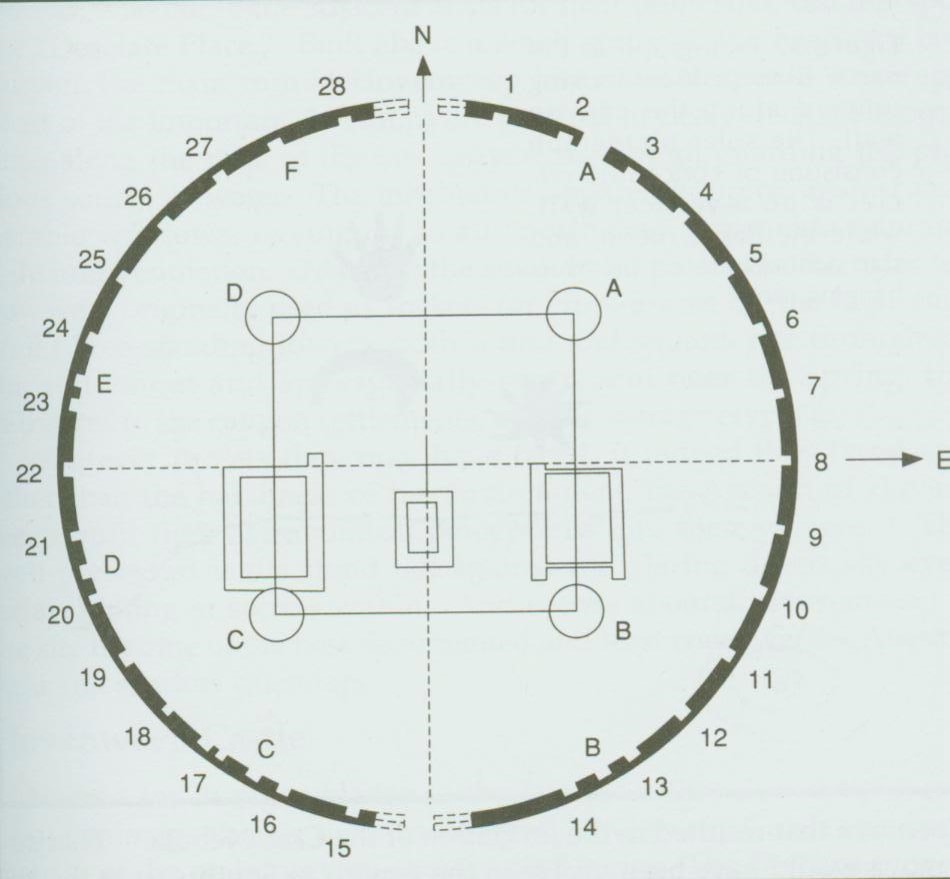

The perfect circle of Casa Rinconada at Chaco Canyon

The circular masonry foundation sockets for the four roof posts on the kiva floor, easily seen on the above image, form a square also centered on the kiva center within 10 cm, with sides oriented to within 30 minutes of a degree of either the N-S or E-W directions.

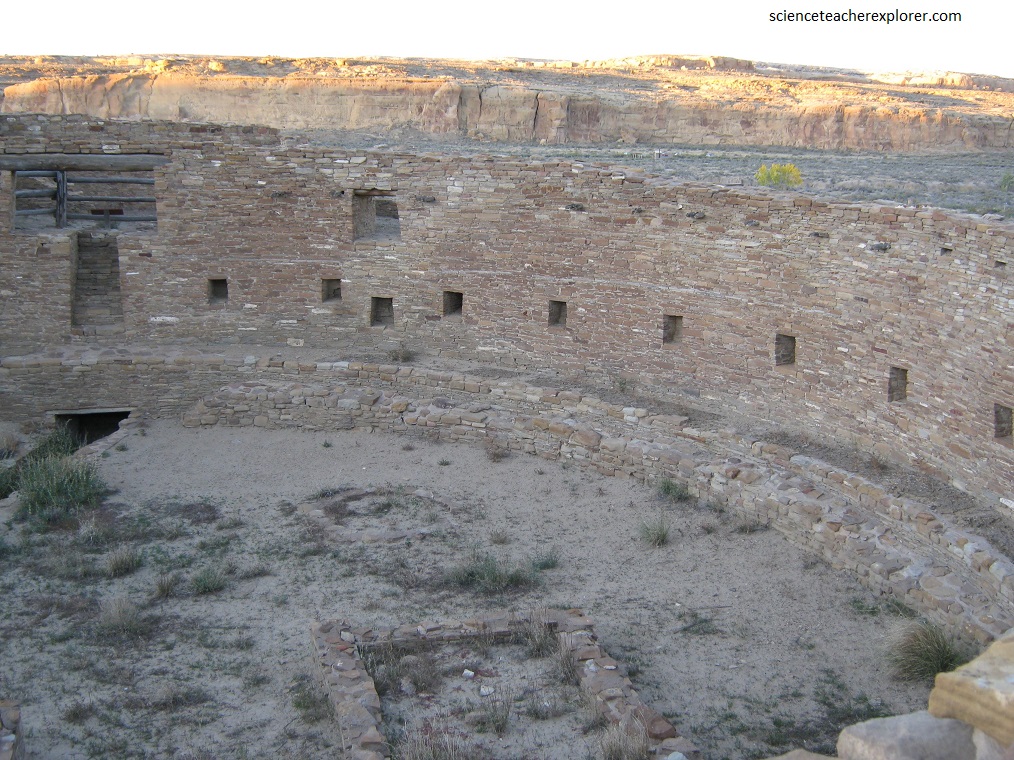

Looking northeast across the Casa Rinconada at the Chaco Canyon

Casa Rinconada is thought to have been designed as a physical representation of the Anasazi cosmos, and was likely used for important religious ceremony involving the larger Chacoan community.

Casa Chiquita Ruins,

Pictured above, Casa Chiquita is a small village of fifty rooms and three kivas, originally standing two or three stories high, is located just to the right of the point where the modern road enters Chaco Canyon.

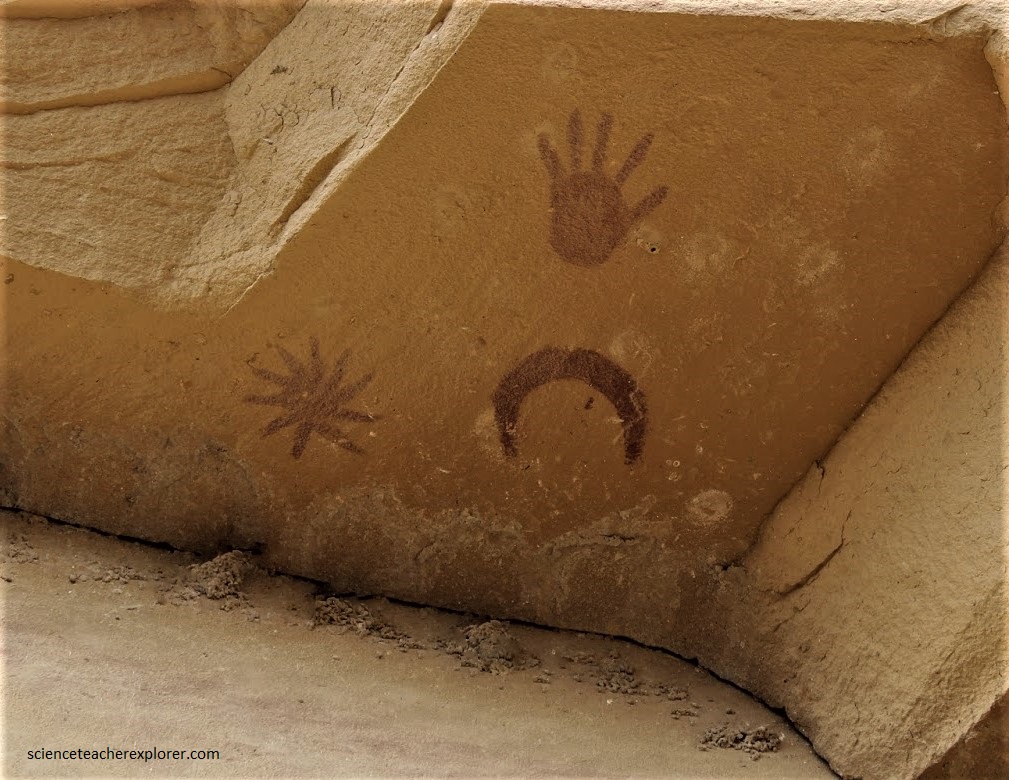

Chaco Canyon pictograph, depicting the crescent moon and a bright star.

Along the Penasco Blanco Trail, about 1 km from Casa Chiquita, the Ancient Pueblos artists pecked out a cluster of petroglyphs. Across the Chaco Wash on the canyon wall a pictograph complex shows a crescent moon, bright star, and human hand, painted beneath the over hang, (pictured above). Somewhat below and to the left are three re circles on a yellow background that probably represent the sun. This cluster may portray a supernova that was visible in Chaco and worldwide in 1054 AD. It could equally well represent Venus in the morning sky. Note: Venus (or the supernova), and the crescent moon as they appear to the viewer looking westward are astronomically impossible, however, with one’s back to the wall, looking upward, as if seeing the moon and Venus rising in the eastern sky, the display is astronomically correct, either for the rising Venus or the supernova. The hand points toward the moon and star as they would appear in the eastern sky just before sunrise, and the sun lies just below the horizon.

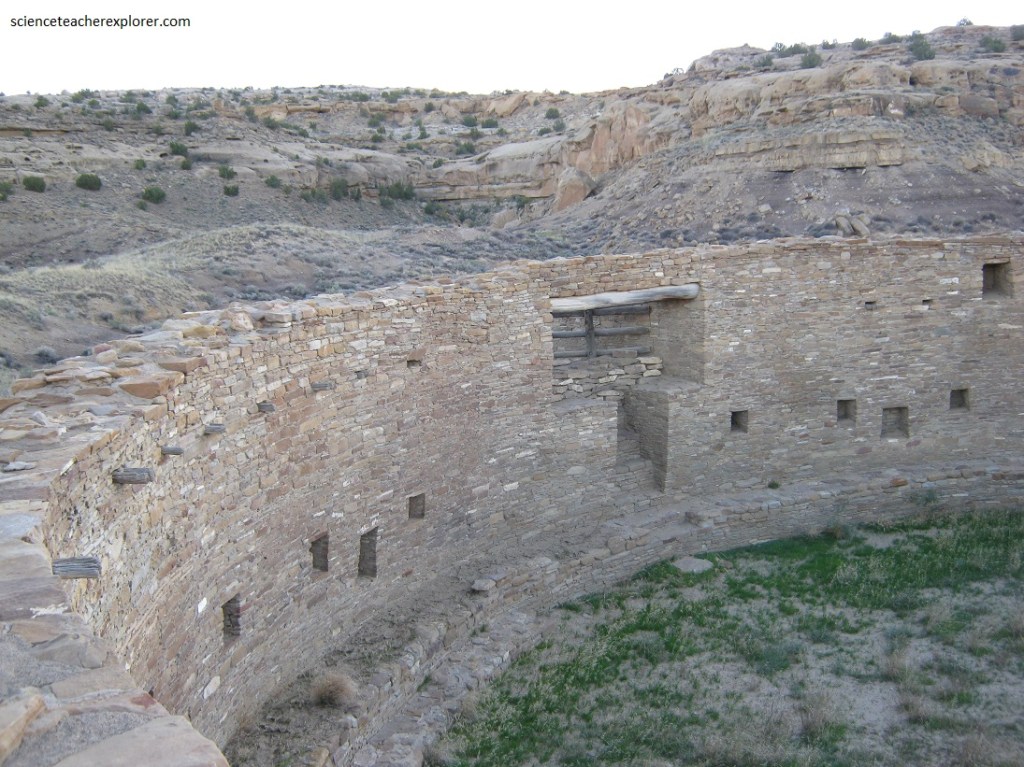

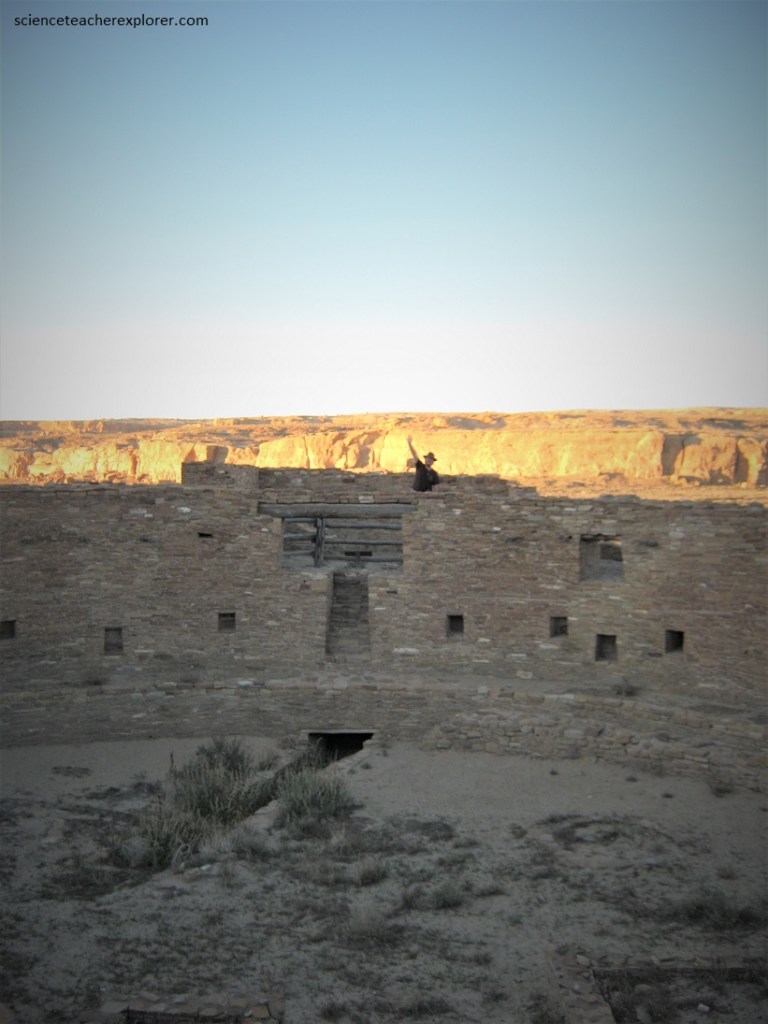

Chetro Ketl Ruins at Chaco Canyon in October 2011

Just east of Pueblo Bonito, Chetro Ketl have known construction dates from 1010 to 1117. Chetro Ketl contained over 500 room and 12 kivas with a great kiva, (which I’m standing next to). Only a small portion of the ruin has been excavated. It has been suggested that the niches in the great kiva of Chetro Ketl were designed to observe the phases of the moon and even the heliacal risings of Venus.

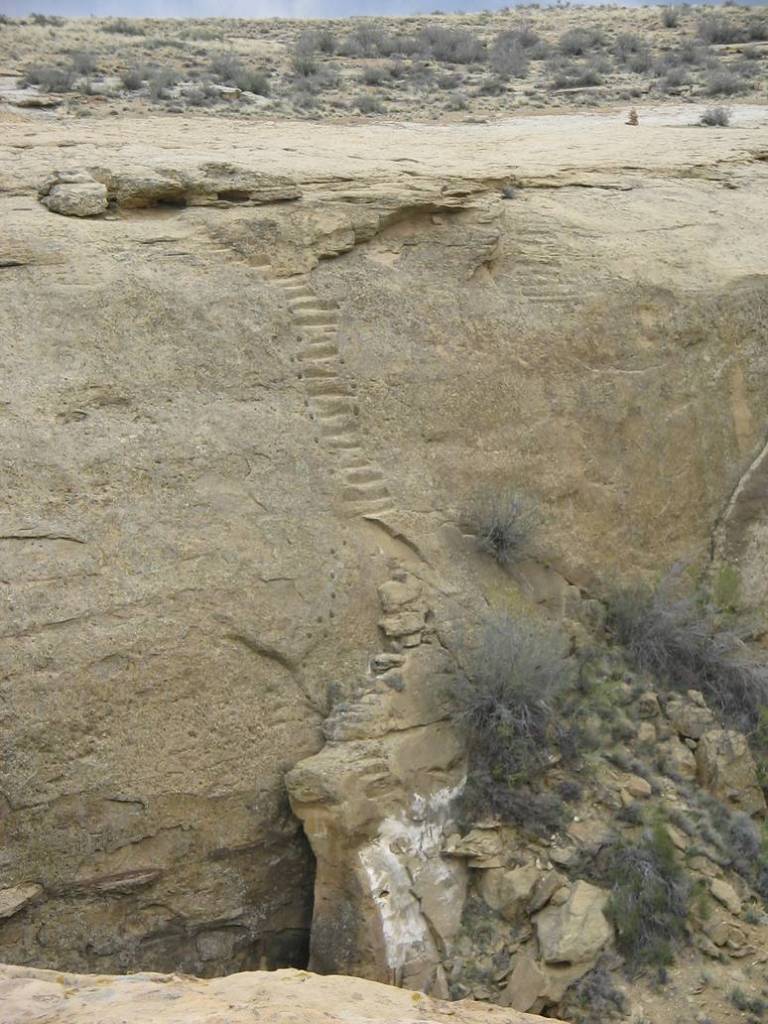

The ancient Jackson Stairs at Chaco Canyon

The most unique and technically advanced aspect of the Chaco culture was the road and signal communication system. The line-of-sight communication network developed by the Chacoans may have linked communities throughout the Chaco Basin by use of fires at night. The roads linking the outliers ran north, south, southeast, and southwest from Chaco Canyon. Pictured above, the ancient Jackson Stairs lead to the mesa top at the head of the canyon northeast of Chetro Ketl. This Great North Road reached Salmon Ruin and probably extended beyond. These roads and stairways joined Pueblo Bonito and Chetro Ketl with Pueblo Alto. Pueblo Alto was the terminus for several roads from the north and northwest. The primary purpose of this extensive roadway network, in addition to the transportation of goods, building materials, and individuals in and out of Chaco Canyon, must have been to hold Chaco Canyon and its outliers together as a social and economic network.

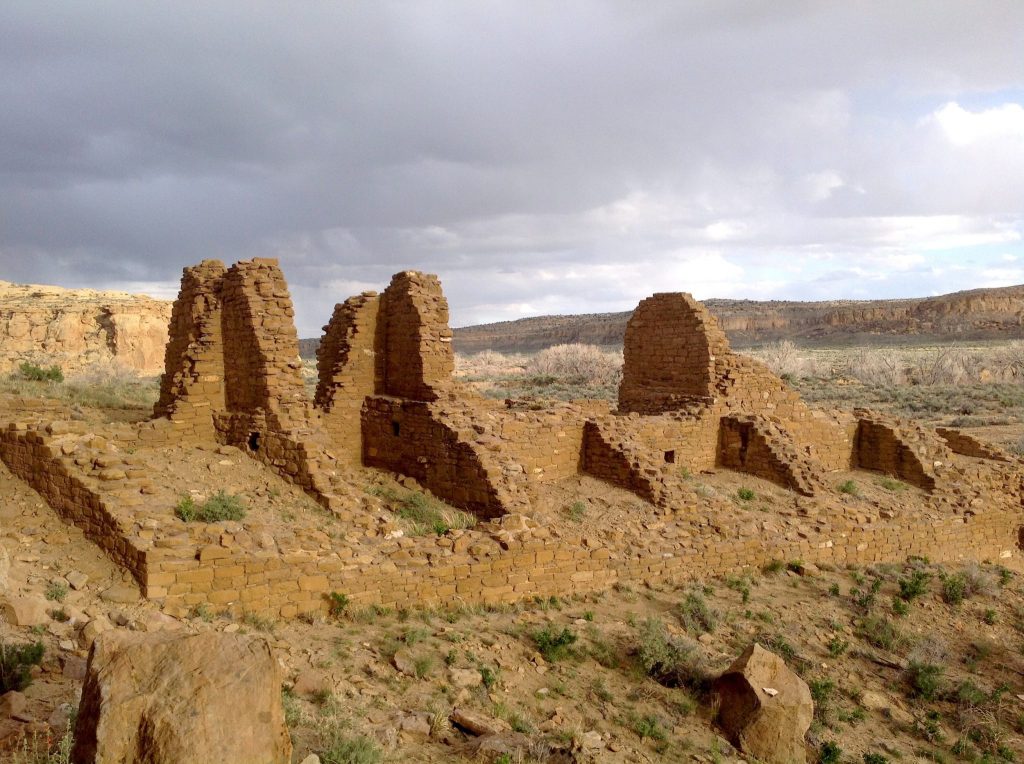

Hungo Pavi Ruins at Chaco Canyon.

Pictured above, Hungo Pavi, at the junction of Mockingbird Canyon and Chaco Canyon, (just below a prehistoric stairway ascending to the mesa), was a medium-size site with 73 lower-story rooms and 2 kivas with tree-ring dates from 943-1047 AD.

Chaco Culture National Historical Park 2011
